Product Overview

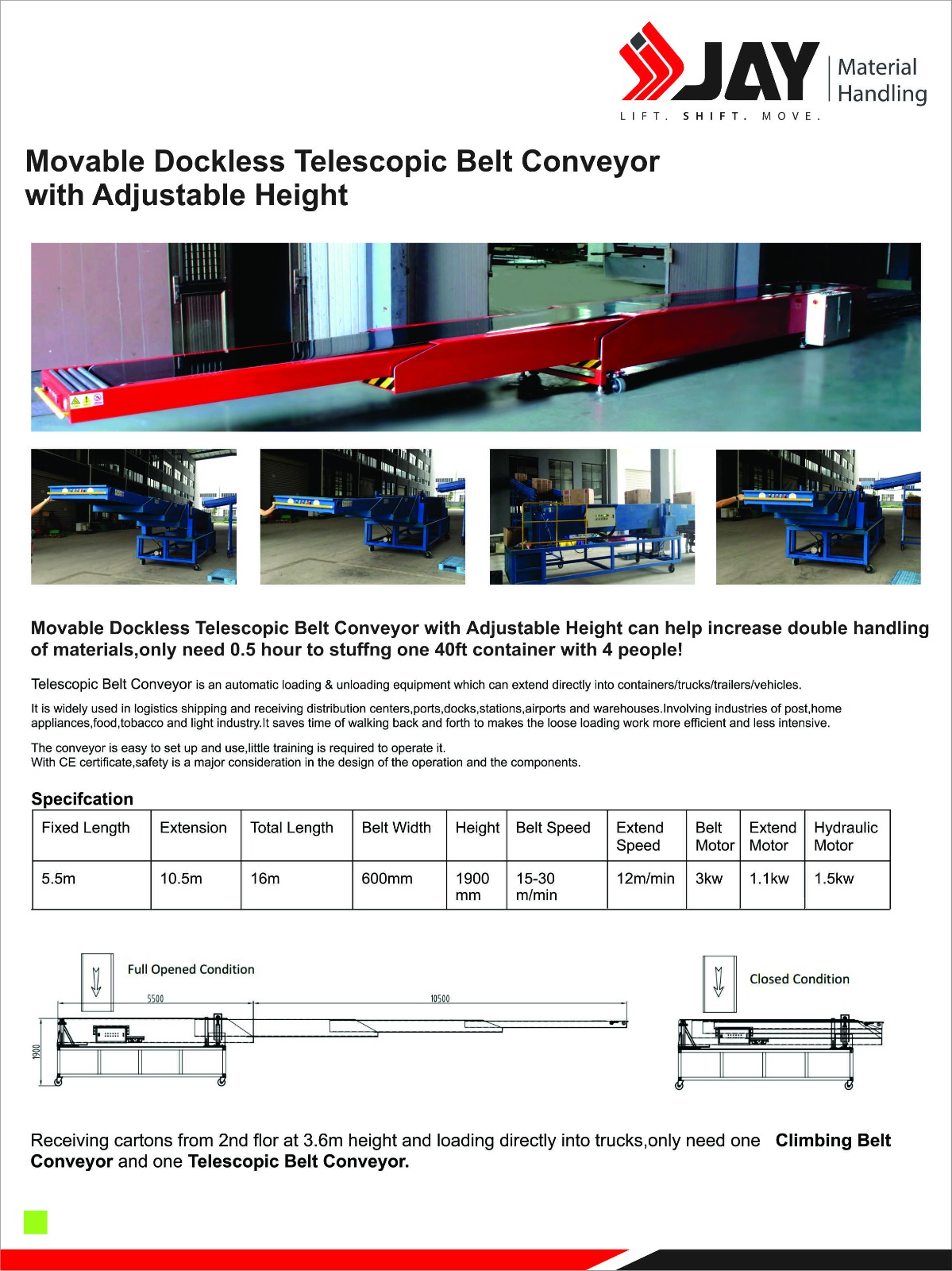

�JAY� Telescopic Belt Conveyor is one of the most popular loaders, which largely facilitates material handling work and increases work efficiency. It widely used for loading/unloading of container, trucks. It is extremely flexible and easily movable in to the position with braked swivel castors. Automatically stop by limit switch when lifting up & down. Electricals includes ON/OFF, emergency stop, Forward/Reverse, Up/down, Stop speed button.
Specifications
TBC M1
It is extremely flexible with easy height adjustment through hydraulic cylinder to level in to the required position.
Max Load
50 kg/m
Belt Width
600mm
Lift ht
1900mm
Variable Speed
10-20 m/min
Fixed length
5500mm
Extended length
6000 to 12500mm
Features
TBC M1
With High quality PVC belt
Conveyor height adjustable from 900mm to 1900mm
Variable belt speed
Easy to move around with heavy duty swivel castors
Automatically stop by limit switch when lifting up & down
Electricals include ON/OFF, Emergency stop, Fwd/Rev, Up/Down, Stop speed button
