Product Overview

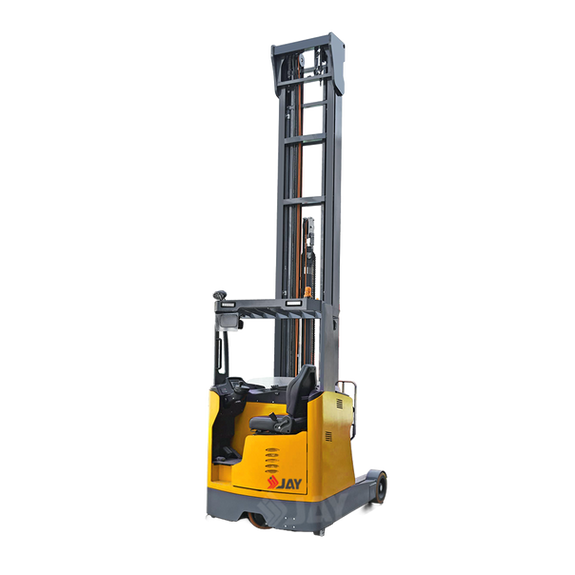

Electric Reach Truck are the ideal compact lift truck solution for high rise racking. Its main advantage is it compact size and higher reach with maximum stability, because of which you can have the maximum usability of the warehouse space. The lift heights are available upto 12.5mtrs & capacity with 1600 kgs & 2000 kgs.The reach trucks have a high residual load capacity and boast a high level of comfort for fatigue-free operation. In particular, a vibration-free operator compartment.
Electric reach truck has a stable design of the mast buffer system, which greatly reduces the shaking of the mast at high positions.
With negligible costs per pallet movement, they provide the necessary output for light to medium-weight loads.
Specifications
MFZ16 | MFZ20
The productivity advantage of this model is the driving speed, which works faster. The driving speed is upto 14 km/hr.
Thus Electric Reach Trucks improve the operation and efficiency of tasks, providing the safest and most efficient mode of operation.
Load Capacity
1600 | 2000 Kgs
Max. Lift Height
12500 mm
Load Centre
600 mm
Fork Length / Width
1070 mm / 232-728 | 232-750 mm
Overall Width
1290 mm
Power
48 V / 420 Ah
Features
Built to perform. Driven to deliver.
Easy to operate and comfortable to improve efficiency.
360° Electric Steering :Allows seamless, effortless navigation inside ultra-tight spaces and very narrow aisles.
High-Rigidity Mast:Built with a low center of gravity and robust steel to eliminate scary mast sway when handling loads at peak heights.
Camera Positioning System:Gives the operator a clear view of the forks on a cabin monitor, preventing accidental rack damage or dropped pallet.
Ergonomic Seated Design:Keeps drivers comfortable and alert during long shifts, directly improving warehouse safety and productivity.
Driving wheel display
Integrated joystick
Steering tiller
Suspension seat
