Product Overview
Manual Electric Drum Lifter / Tilter – Counter Balance from ‘JAY’ are also widely known as Semi Battery Drum Lifter / Tilter, this equipment are cost effective option for low duty applications of lifting, tilting or stacking of Std. MS drums or similar HDPE drums. And its unique design with counter balance chassis, makes it easy to use in all applications. These equipments are easy to use with simple push button operated lifting & lowering operations. It is also available with auto clamping and motorised tilting options.
This range of ECDL-03 is also available in A.C. version, with flameproof electricals and with customisation as per applications requirements. There are many other compactible accessories available for use with this equipment in variety of applications. This range of equipment from JAY are very useful across all segments of industries.
Features
COMPACT AND USEFUL EQUIPMENT FOR DRUM LIFTING AND TILTING APPLICATION.
In-built battery charger
Steering wheel for easy maneuverability
Robust chassis
Battery indicator
Foot guard for operator safety
Long tiller for effortless operations
Steered wheel with foot guards
Gas spring loaded steering handle
Motorised Tiling (Optional)

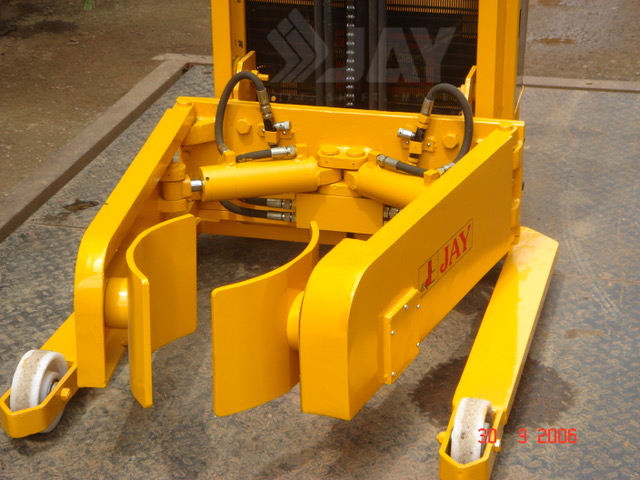

Auto drum clamping (Optional)
Specifications
ECDL-03 M3
Manual Electric Drum Lifter / Tilter – Counter Balance are equipped with In-built battery charger for easy charging anywhere any time. It is also equipped with steering wheels which ensures easy manoeuvrability. ECDL-03 model are available from the lift ht. of 1500mm to 3000mm.
Load Capacity
300 kg
Max Lift Height
3000mm
Load Centre
780mm
Power
12V / 130Ah
Overall Width
980mm
Wheels
Nylon / PU Wheels
